TC508 Business Two-way Radio

The excellent design of compact TC508 portables guarantees superior ergonomics,is an ideal choice for facilities, hospitality, manufacturing, retail, education and construction. Moreover, it can ensure a great performance in any operating conditions, TC508 Business Two-way Radio provides up to 14 hours of battery life to ensure long-lasting performance and convenience.

Highlights of TC508 Business Two-way Radio

Robust & Reliable

It is built to survive the hard knocks, drops and some tough environments of its users.

Enhanced Voice Quality

TC508 Business Two-way Radio employs advanced voice technologies to better the sound quality during your communication.

Longer Battery Life

It is equipped with a 1650mAh battery that enables you to transmit and receive, on a 5-5-90 basis, for up to 14 hours.

Compact & Light-weight

The TC508 Business Two-way Radio has a light-weight but exceptionally strong body, allowing it to be carried about easily.

Specifications of TC508 Business Two-way Radio

Frequency Range
UHF: 400-470 MHz; VHF: 136-174 MHz
Channel Capacity
16
Channel Spacing
25 KHz/12.5 KHz
Operating Voltage
7.4 V
Battery
1300 mAh
Battey Life(5/5/90 Duty Cycle,High TX Power)
11 hours
Frequency Stability
±2.5 ppm
Antenna Impedance
50 Ω
Dimensions(H×W×D) mm
113 mm × 54 mm × 35 mm
Weight
280 g
Sensitivity(Analog)
≤0.251 uV/0.282 uV
Adjacent Channel Selectivity
65 dB/55 dB
Intermodulation
60 dB
Spurious Response Rejection
65 dB
S/N
45 dB/40 dB
Rated Audio Power Output
0.5 W(Speaker impedance: 16 Ohm)
Rated Audio Distortion
≤5% (0.5 W)
Conducted Spurious Emission
-57 dBm 1 GHz
RF Power Output
5 W/2 W(VHF) 4 W/2 W(UHF)
FM Modulation
16K0F3E/11K0F3E
Modulation Limiting
≤2.5 KHz (12.5 KHz); ≤5 KHz (25 KHz)
FM Hum&Noise
40/35 dB
Audio Distortion
≤ 5%

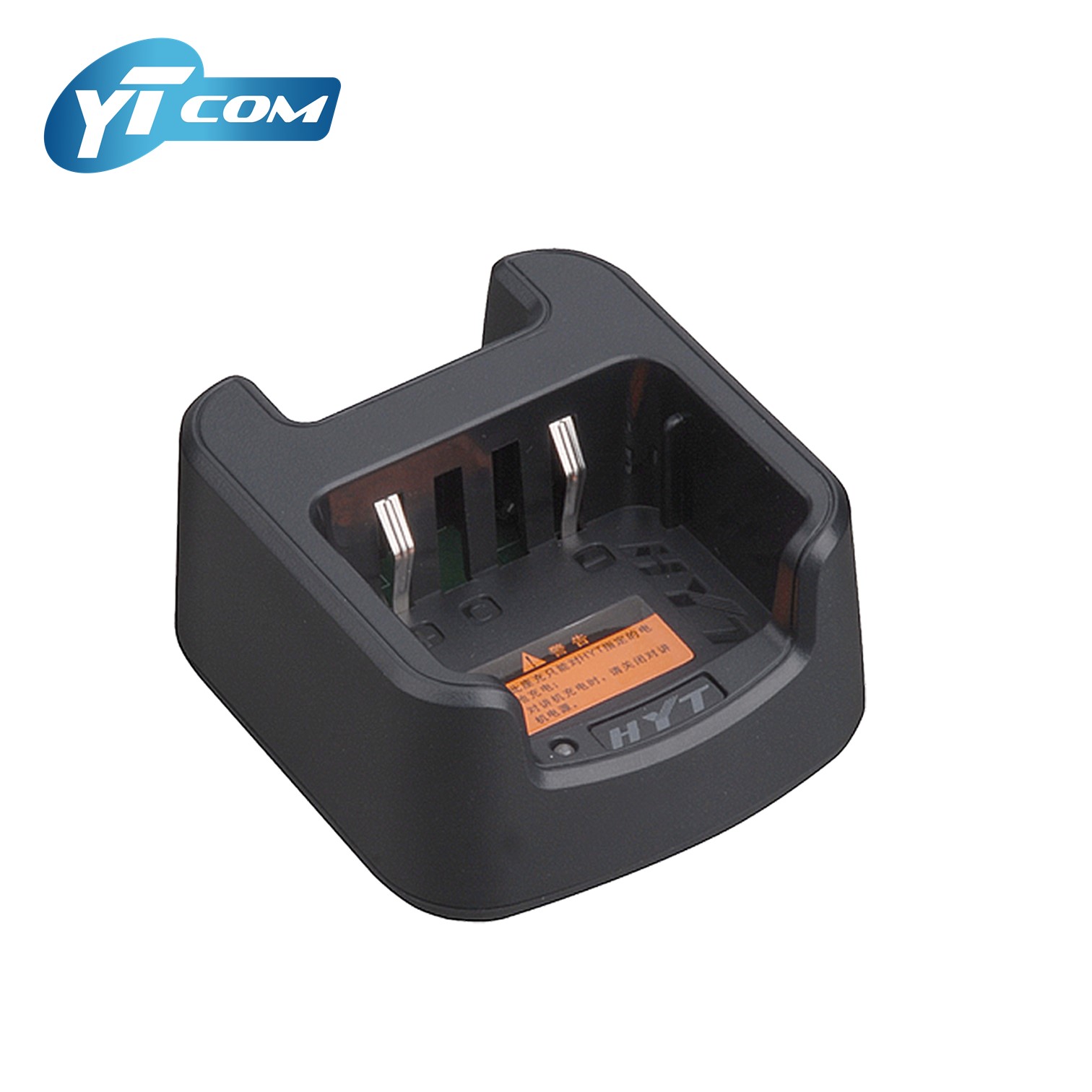

Accessories of TC508 Business Two-way Radio
